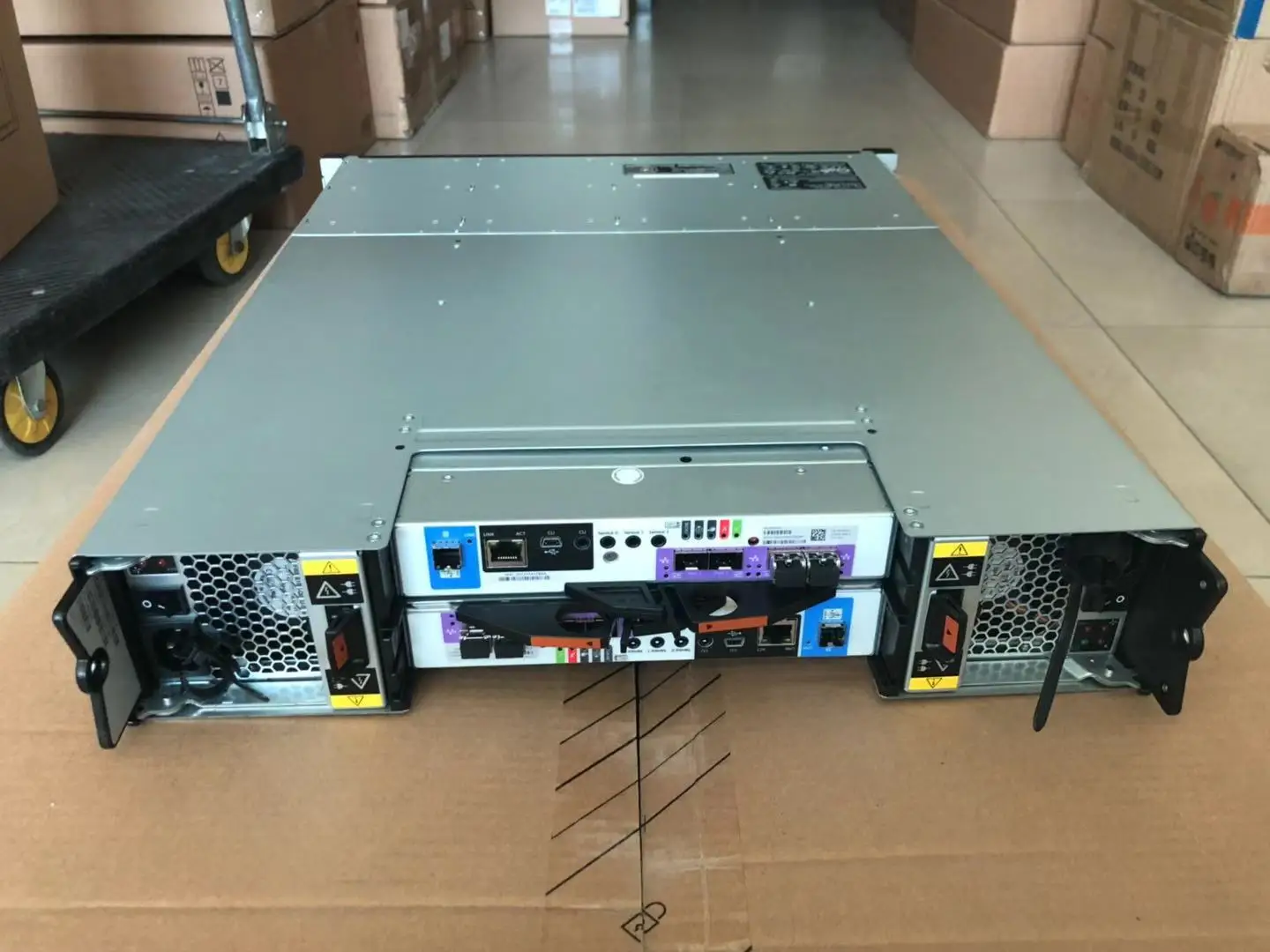

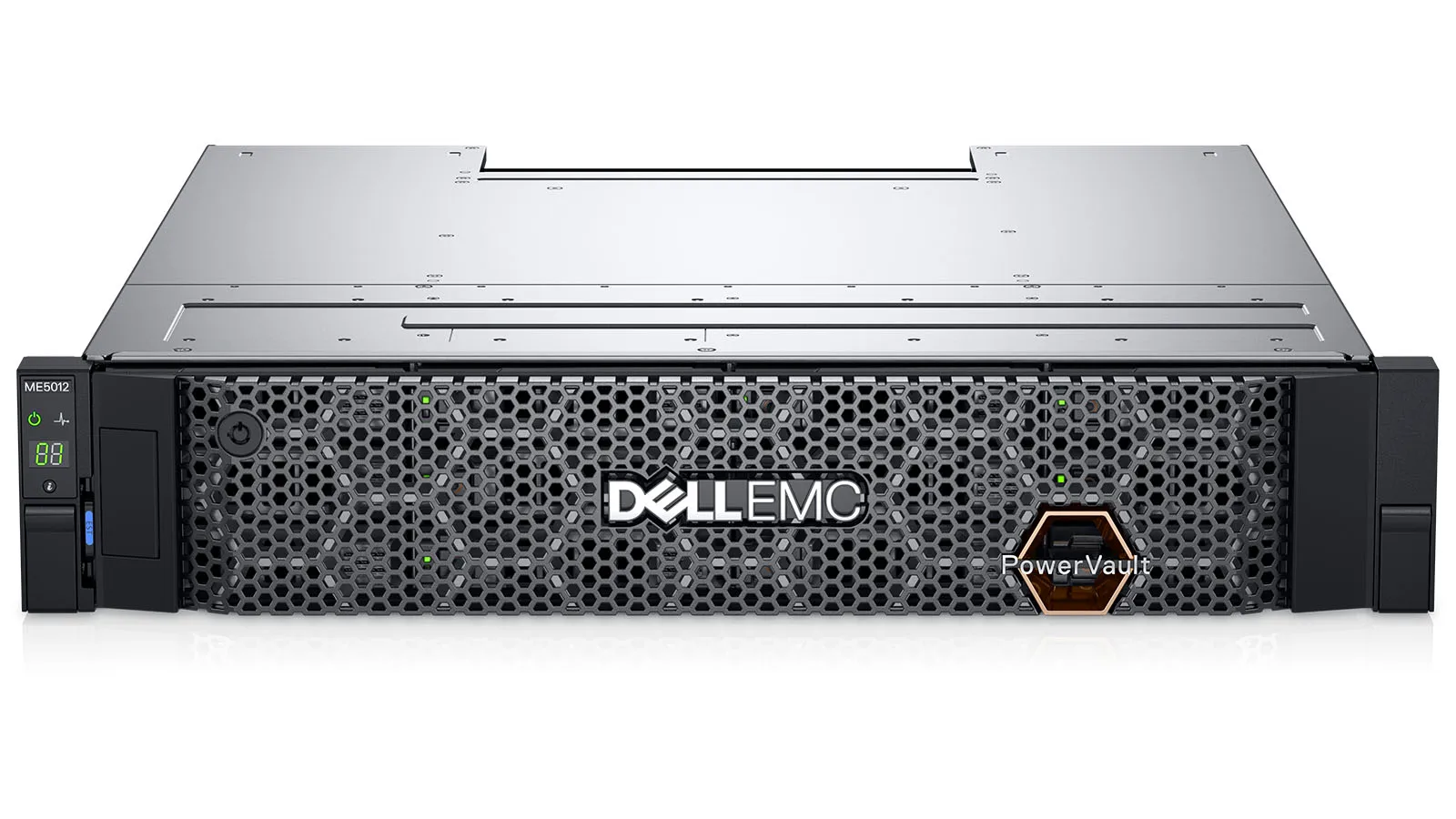

Dual Control Network Access DELL PowerVault ME5012 Storage 580W RAID 5

Brand Name : DELL

Model Number : ME5012

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Product Name : PowerVault ME5012

Power Supply : 580W

Supported Storage Protocols : FC ISCSI FC-NVMeNVMe

Controllers : Dual Controller Support

RAID support : RAID 5

Processor : Dual Control

Contact Now

dell me5012 data network access storage dell powervault me5012

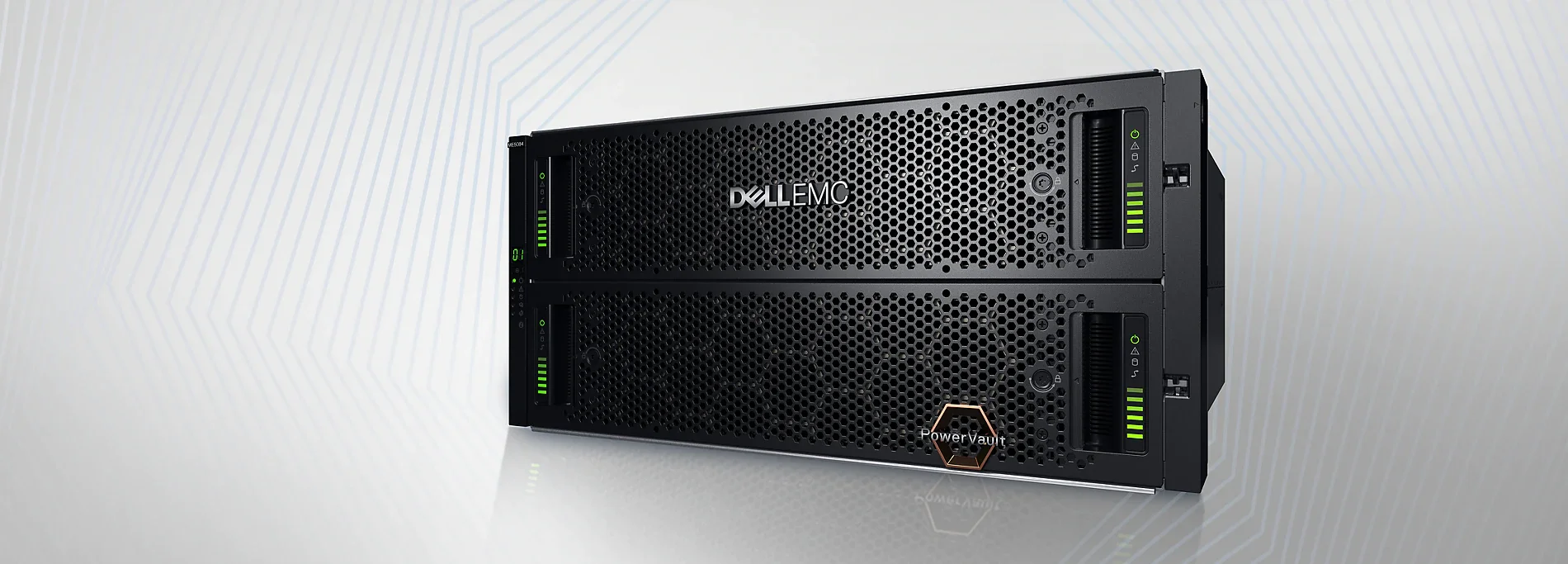

Dell PowerVault ME5 base system and expansion models

The two non-dense ME5 base arrays start at 2U and the dense ME5 array starts at 5U. The base models all support dual-active controllers with each controller including 16GB of memory.

Optional ME5 expansion enclosures let you scale up to 336 drives or 8PB1. PowerVault ME412 and ME424 expansion enclosures can only be used with either ME5012 or ME5024 base arrays. The ME484 dense expansion enclosure is supported behind any of the ME5 base arrays. A variety of SSD, 10K and NLSAS drives (including FIPS-certified SEDs) are available.

Product Specification

Chassis Overview
Chassis format
All-in-one: dual controllers, internal drive bays, networking and with expansion options
Rack size
2U or 5U
Controllers
2 hot-swappable per chassis (dual-active)
Single/dual controller support for 2U models
Dual controller support only for 5U model
Internal storage
ME5012: 12 x 3.5” drive bays (2.5” drive carriers supported)
ME5024: 24 x 2.5” drive bays
ME5084: 84x 3.5” drive bays (2.5” drive carriers supported)
System memory
16GB per controller (32GB total)
Expansion Capacity
Expansion enclosures
ME412: 12 x 3.5” drive bays (12Gb SAS)
ME424: 24 x 2.5” drive bays (12Gb SAS)
ME484: 84 x 3.5” drive bays (12Gb SAS)
Min/Max drive count
ME5012: 2/264
ME5024: 2/276
ME5084: 28/336
Max raw capacity
ME5012: 2.40PB (with 9xME412 expansion) | ME5012: 1.89PB (with 9xME424 expansion)
ME5024: 2.34PB (with 9xME412 expansion) | ME5012: 1.83PB (with 9xME424 expansion)
ME5012: 5.28PB (with 3xME484 expansion) | ME5024: 5.22PB (with 3xME484 expansion)
ME5084: 6.72PB (with 3xME484 expansion)
NAS Support
Supported with NX Series Windows NAS appliance
Storage media
SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system:
• NLSAS 7.2K 3.5” – 4TB, 8TB, 12TB, 16TB, 16TB FIPS, 20TB
• SAS 10K 2.5” – 1.2TB, 2.4TB, 2.4TB FIPS
• SSD – 960GB RI, 1.6TB MU, 1.92TB, 3.84TB, 3.84TB FIPS, 7.68TB RI
• SDD and HDD: FIPS-certified SEDs
