HPE Server P52499-B21 Hpe Dl360 Gen11 8sff Cto Server Rack Type 3.8GHz

Brand Name : HPE

Model Number : DL360 GEN11

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Products Status : Stock

Processor Main Frequency : 3.8GHz

Type : Rack

Processor Type : Intel

Processor core available : 4 to 28 core, depending on model

Memory slots : 24 DIMM slots

Contact Now

HPE Server P52499-B21 DL360 Gen11 8SFF CTO server

Specification

Model	HPE ProLiant DL360 Gen11 Server
Processor	The 2nd digit of the processor model number “x4xx” is used to denote the processor generation (i.e. 4 = New 4th Generation Intel® Xeon® Scalable Processors
Chipset	Intel® C741 Chipset
Memory type	HPE DDR5 SmartMemory
DIMM Slots Available	32
Maximum memory	8.0 TB
Expansion Slots	3
Graphics	Integrated video standard •Video modes up to 1920 x 1200 @ 60 Hz (32 bpp) • 16 MB Video Memory
HPE iLO 6 on system management memory	• 32 MB Flash • 8 Gbit DDR4 with ECC protection
Internal Storage Devices	• Optical Drive Available on 8 SFF and 4 LFF CTO Servers as an option (DVD-ROM or DVD-RW) • Hard Drives None ship standard
Essential RAID Controllers	HPE Smart Array E208e-p SR Gen10 Controller
Warranty	3 years

----------Details Images----------

HPE Server P52499-B21 Hpe Dl360 Gen11 8sff Cto Server Rack Type 3.8GHz

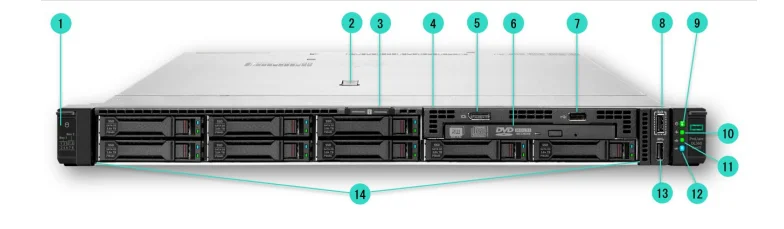

8 SFF Front View – 8 SFF + optional Universal Media Bay, optical drive, Display Port, USB2.0 and SAS drives shown

1. Drive support label 8. iLO Service port

2. Quick removal access panel 9. Power On/Standby button and system power LED

3. Serial number/iLO information pull tab (optional - shown) 10. Health LED

4. Universal Media Bay (optional) 11. NIC status LED

• Option: Optical drive bay + Display port & USB 2.0 port kit (shown) 12. Unit ID button/LED

• Option: 2 SFF 24G x4 Tri-Mode SAS/SATA/U.3 NVMe cage 13. USB 3.2 Gen1 port

14. Drive bays; optional backplanes:

5 Display Port (optional – shown) • Option: 8 SFF x1 24 Tri-Mode SAS/SATA/U.3 NVMe

6 Optical drive (optional – shown) • Option: 8 SFF x4 24G Tri-Mode SAS/SATA/U.3 NVMe

7 USB2.0 port (optional)

4 LFF Front View – 4 LFF + optional Optical drive, Display Port, USB2.0 and SAS drives shown

1. Drive support label 7 iLO Service Port

2. Optical drive (optional – shown) 8. Power On/Standby button and system power LED

3.Serial number/iLO information pull tab 9. Health LED

4. Quick removal access panel 10. NIC status LED

5. Option: Display port &USB 2.0 port bundle Kit (blank shown) 11. Unit ID button/LED

6. USB 3.2 Gen1 port 12. SAS/SATA drive bays

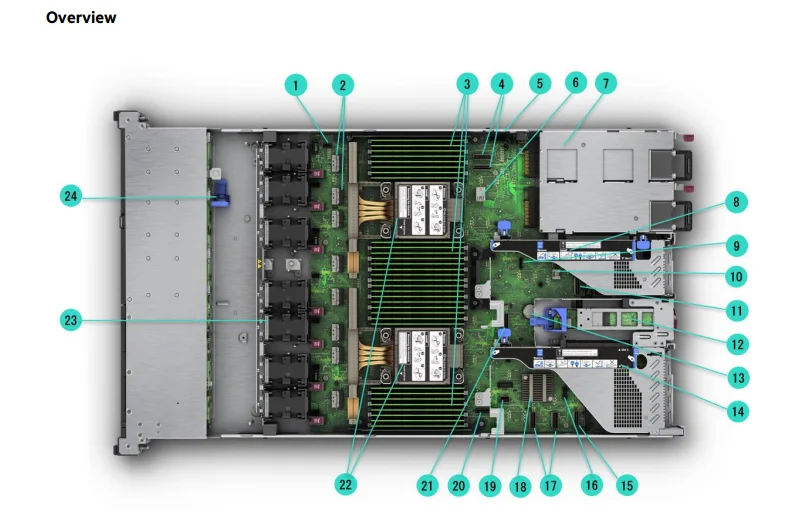

Internal View - Standard for all DL360 Gen11

1. Liquid Cooling Module connector 13. System Battry

2. x8 SlimSAS ports (1A to 4A, 1B to 4B) 14. Primary (CPU1) Riser PCIe 5.0

3.DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots

4. Socket 2 MCIO ports (1 & 2) 15. OCP Slot port

5. Backplane Power connector 16. Front Display Port and USB 2.0 connector (optional feature)

6. Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0) 17. LP SlimSAS ports (1 & 2)

7. Redudant Power Supply (1 & 2 as shown) 18. Chipset

8. Secondary (CPU 2) Riser PCIe 5.0 19. Front I/O and USB 3.2 Gen1 connector

• Option: Low Profile x16 20. SATA Optical port

• Option: Full height x16 (lose Slot 2 on Primary Riser) 21. Socket 1 MCIO connector

9. SID connector (optional feature, 8SFF only) 22. CPU 1 and CPU 2 (shown with High Perfromance Heatsink)

10. Energy Pack connector 23. Hot plug (dual rotor) High Performance Fan Kit (7 fans)

11. OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit

12. HPE NS204i-u NVMe Hot Plug Boot Optimized Storage 24. HPE Hybrid Capacitor or HPE Storage Battery holder

Device (optional – shown)

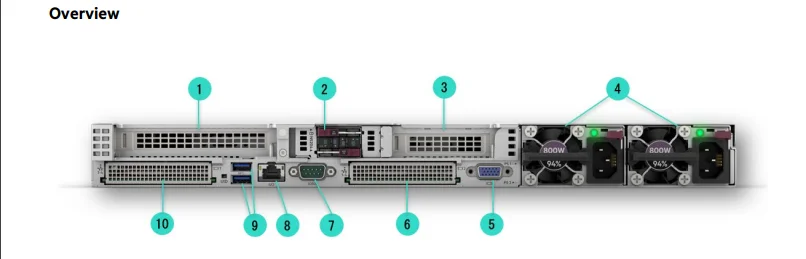

Rear View - Standard for all DL360 Gen11

1. Slot 1 PCIe 5.0 – Full Height 6. OCP 3.0 Slot 2: x16 PCIe 5.01,2 (Requires 2nd Processor)

2. Slot 2 PCIe 5.0 – Low Profile* 7. Serial port (optional - shown)
Notes: *Shown with optional NS204i-u Boot Device

3. Option: Slot 3 PCIe 5.0 (Requires 2nd processor) 8. iLO Management Port

• Low Profile and Full Height options 9. USB 3.2 Gen1 Ports

4. Redundant Power Supply (1 & 2 as shown) 11. OCP 3.0 Slot 1: x16 PCIe 5.0

5. Video (VGA) port
